Overview: Radiator Repair
Start with the part nobody wants to hear. If the temperature gauge is climbing into the red, or steam is coming out from under the hood, stop driving. Pull over, shut the engine off, and get it towed. An engine that overheats once and is shut down usually survives. An engine driven home hot needs a head gasket at the cheap end.
The hardware in this category is the radiator itself, the hoses, the water pump, the thermostat, the cooling fans, the pressure cap and the heater core buried in the dash. Leaks show up where the plastic end tanks crimp onto the aluminum core, at hoses that have gone hard and shiny, or at the water pump's weep hole. Blockage is the quieter failure: the car runs fine in town and creeps hot pulling a grade in traffic.
Most radiators today are replaced rather than repaired, because a new one costs less than the hours it takes to open an old one. Shops that recore still exist and they earn their keep on trucks, tractors and older cars with brass radiators worth saving.
Use the state and city lists below. These shops often sit near truck routes and industrial streets rather than retail strips.
Cost of Radiator and Cooling-System Repairs
Engine cooling-system faults on passenger vehicles. Routine coolant replacement has its own service category.
| Service or charge | Planning estimate | What it covers |
|---|---|---|
| Cooling-system pressure test | $35–$170per test | Pressurize and inspect the engine cooling system to help locate a leak.A test identifies a fault; repairs are separate. Combustion-gas testing, intermittent overheating diagnosis and extended troubleshooting need their own allowance.Scope detailsIncluded in this estimate: Standard pressure test; Inspection for accessible leaks Separate unless quoted otherwise: Replacement parts; Comprehensive overheating diagnosis; Engine internal-leak tests |
| Radiator replacement | $400–$1,550installed per radiator | One diagnosed engine radiator supplied and installed.Confirm radiator grade, coolant refill and bleeding, seals and the final leak check. Hoses, fans, thermostat and engine damage are separate unless listed.Scope detailsIncluded in this estimate: Specified engine radiator; Removal and installation labor Separate unless quoted otherwise: Coolant, bleeding or leak testing if separately charged; Other damaged hoses or cooler lines; Separate diagnosis |
| Radiator-hose replacement | $90–$560per hose | One specified upper or lower radiator hose supplied and installed.Specify upper or lower hose and included clamps. Confirm coolant replacement and bleeding; a full flush or additional pressure diagnosis may be separate.Scope detailsIncluded in this estimate: One specified upper or lower radiator hose; Installation labor Separate unless quoted otherwise: Clamps, coolant or bleeding unless listed; Other hoses; Separate diagnosis |
| Thermostat or housing replacement | $150–$750per assembly | The required thermostat or integrated thermostat-housing assembly supplied and installed.A simple thermostat valve and an electronic housing assembly are different parts. Ask whether seals, coolant and bleeding are covered.Scope detailsIncluded in this estimate: Specified thermostat or integrated housing assembly; Installation labor Separate unless quoted otherwise: Seals, coolant or bleeding unless listed; Additional leaks; Separate diagnosis |
| Water pump replacement | $400–$1,150per pump | One diagnosed engine-cooling water pump supplied and installed.Ask whether coolant, seals and bleeding are included. If timing-belt work overlaps, request one combined quote that avoids charging the shared labor twice.Scope detailsIncluded in this estimate: Specified water pump; Removal and installation labor Separate unless quoted otherwise: Coolant or additional seals unless listed; Timing-belt kit unless listed; Unrelated leaks or engine-damage repair |
What affects the price
- Which component caused the problem and whether other damage is present
- Component access and shared labor with timing-drive work
- Coolant, bleeding, hose or clamp replacements and final testing
Questions to ask before booking
- Which test identified the failed part, and is this a repair or replacement quote?
- Does the total include the correct coolant, bleeding and a final leak check?
- Which additional hoses or parts need replacement now, and what evidence supports that?
Before you book
An overheating complaint needs a diagnosis before choosing a radiator replacement.
U.S. planning estimates in USD. Taxes and fees may be extra; confirm the work and written total. Actual quotes can fall outside these ranges.
Frequently asked questions

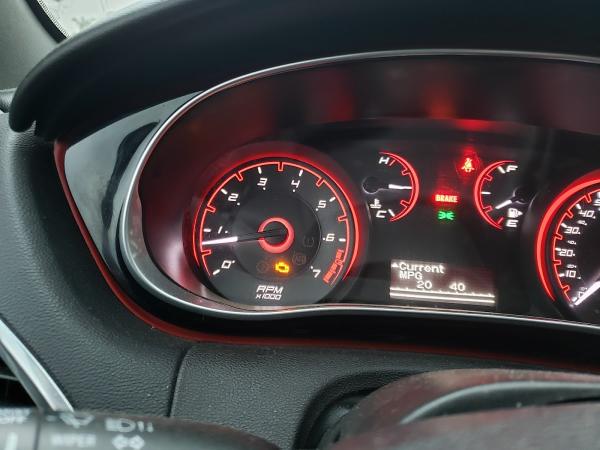

What do I do when the temperature gauge climbs?
Pull over as soon as it is safe and shut the engine off. Heat does its damage in minutes, not miles. Do not open the radiator or the reservoir cap while the engine is hot, because the system is under pressure and the spray is boiling. If you are crawling in traffic and the gauge is only creeping, turning the heater on full pulls some heat out and can buy you the next exit.
Where do radiators normally leak?
At the seam where the plastic end tank is crimped onto the metal core, which is where heat cycles and age eventually win. After that: the core itself, punched by a stone or eaten from the outside by road grit, and the plastic necks that hoses clamp onto. Some cars run the transmission cooler inside the radiator tank, and when that wall fails you get coolant and transmission fluid mixing.
Repair the radiator or replace it?
Replace, for most cars on the road. Modern radiators are a plastic and aluminum sandwich that cannot be soldered, so patching a cracked tank is a short-lived fix and the labor costs more than a new unit. Repair still makes sense for heavy trucks, farm equipment and older all-metal radiators, where a shop can rod out the core or fit a new one into the original tanks.
Why does overheating not always mean the radiator?
Because anything in the loop can stop the heat leaving. A thermostat stuck shut holds coolant in the engine. A cooling fan that does not switch on gives you a car that is fine at speed and hot at a light. A water pump with a worn impeller pushes nothing. A cap that no longer holds pressure lets coolant boil early. A shop should test the whole loop before selling you a radiator.
Could this be the head gasket instead?
It might be, and the symptoms overlap badly. Coolant that vanishes with no puddle underneath, white sweet-smelling smoke from the exhaust, bubbles rising in the reservoir while the engine runs, or a milky film under the oil cap all point that way. A shop can test the coolant for combustion gases in a few minutes. Do that test before anyone replaces cooling parts one at a time.
